THE 4AGE 20V ECU / EFI SYSTEM

sample text

Category
  • Toyota / 4A-GE
  • Car page
Page Content

TO DO:
-Pinout and Schematics that were never released for Blacktop for some reason.



-more

Go here for ECU Repair and Modifying

ECU MODS

The Blacktop MAP Sensor:

The OEM MAP sensor (89420-42010) for the Blacktop has been out of production for almost 20 years now.

I’ve been digging into this for quite a while, and I can now confidently confirm at least one direct alternative that’s still available.

The 89420-06040 MAP sensor from a Camry Solara is an identical match to the values listed in the Blacktop workshop manual.

See the images below:

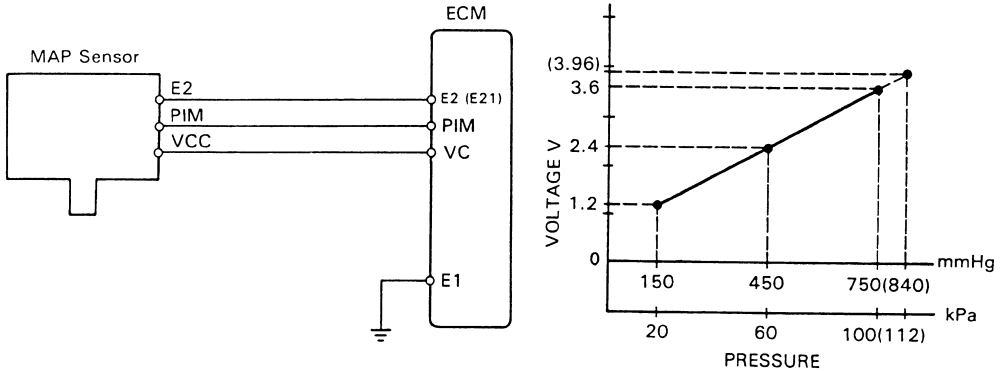

First image: from the Blacktop workshop manual.
Note: The manual measures voltage drop (starting from 3.6 V), which is why the values appear reversed.

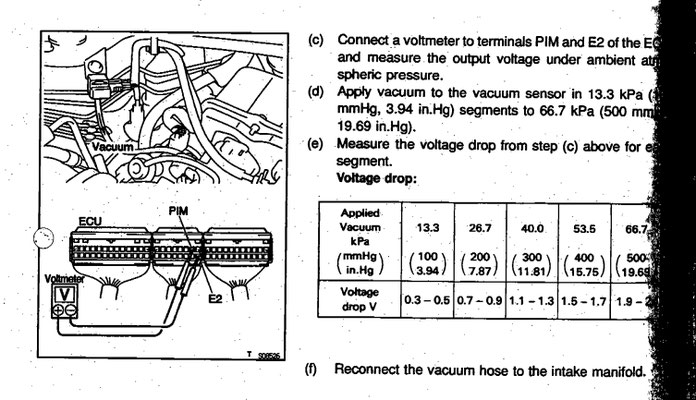

Second image: from the Camry manual.



THE 4AGE 20V ECU / EFI SYSTEM
THE 4AGE 20V ECU / EFI SYSTEM
THE 4AGE 20V ECU / EFI SYSTEM

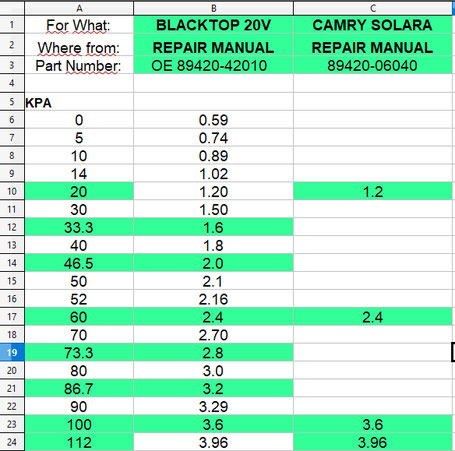

MAP Comparison
Includes data i gathered from user manuals and the web.
Also includes other sensors that MAY also work
MAP Comparison.pdf | Adobe Acrobat Document 49.2 KB
Download



Green-highlighted fields represent known reference values from the service manual.


8942012190 and 89420-12040 also are supposed to work.
See PDF.
I did not test those two.
